Strut Channel Roll Forming Machine
Strut Channel Roll Forming Machine production line is to produce the strut channel as solar mounting frame. Forming machineis combined and adjustable, the change size through adjust distance of rollers to complete.
Profile drawing

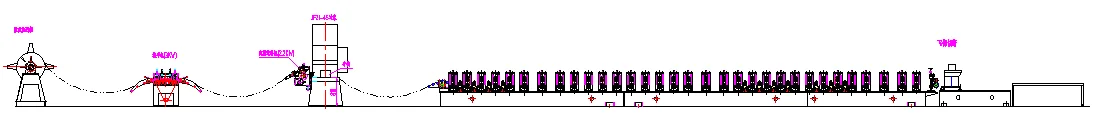

Technological process:
Uncoiler—Material Storage—Leveling—Material storage—Servo feeding—Punching—Material storage—Roll forming—Cutting—Output table
Technical Parameters
| | Items | Specifications |
| Material of coil | Material Width | As per sketch |
| Material Thickness | 1.5-3mm |
| Manual Uncoiler | 5 tons |
| Leveling | 5rollers | 2rollers up, 3rollers down |
| Servo feeding | Model | NC300 |
| Motor | 2.2kw |
| Press machine | Model | 80T |
| Mould material | Cr12Mov,quenching HRC 58-62° |
| Forming system | Rolling Speed | 6-8m/min |
| Roller Stations | 20stations |
| Roller Material | Gcr15, quenching, HRC 58-62 |
| Shaft diameter | 76mm |
| Shaft Material | 45#steel |
| Main Motor Power | 22kw |
| Frame structure | Memory archway |
| Transmission | Gearbox |
| Correction | Turkey head |
| Cutting system | Hydraulic Power | 3kw |
| Cutting blade | Cr12Mov,quenching HRC 58-62 |
| Tolerance | +-1.5mm |
| Electrical control system | Electric Source | 380V, 50HZ,3 phase |
| PLC Control System | SIEMENS/Panasonic |
Main Items
| No. | Name | Qty |
| 1 | Manual Uncoiler | 1 |
| 2 | Leveling | 1 |
| 3 | Servo Feeding | 1 |
| 4 | Press machine | 1 |
| 5 | Roll Forming Machine | 1 |
| 6 | Cutting | 1 |
| 7 | PLC Control Box | 1 |
| 8 | Hydraulic Pump Station | 1 |
| 9 | Output Table | 2 |
Packaging & Shipping
1. Tighten to container with steel wire rope and welded machine with container by angel iron
2. Main forming machine and un-coiler is naked (If you need we can also packed with water-proof plastic)
3. PLC control system and motor pump are packed in wooden box with water proof paper coverage
Why choose us
1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 13 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
