PPGI Trapezoidal Metal Roll Forming Machine 15m/Min

Name: PPGI Trapezoidal Metal Roll Forming Machine 15mMin
Brand: Dingbo
Price: 1 USD

Brand Name : Dingbo

Model Number : DBRF

Certification : CE ISO

Place of Origin : Jiangsu

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 20sets/month

Delivery Time : Within 45 working days after receiving the deposit

Packaging Details : Suitable for the sea shipment

Speed : 10-15m/min

Thickness : 0.8-2mm

Mateiral : PPGI

Roller station : 15station

Feeding width : 330mm(customized)

Color : Blue

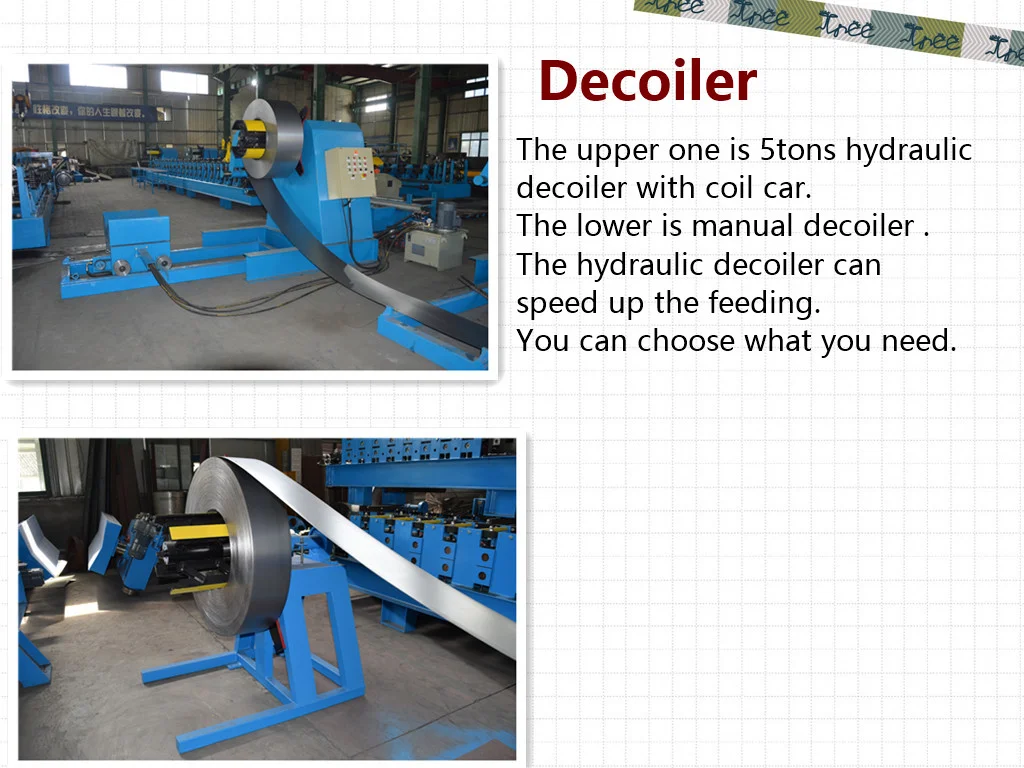

decoiler : Manual decoiler

payment : TT

Contact Now

High Speed 1000 Trapezoidal Roofing Sheet Machine Tile Making Machinery

Machine Pictures

Profile drawing

Product Descriptions

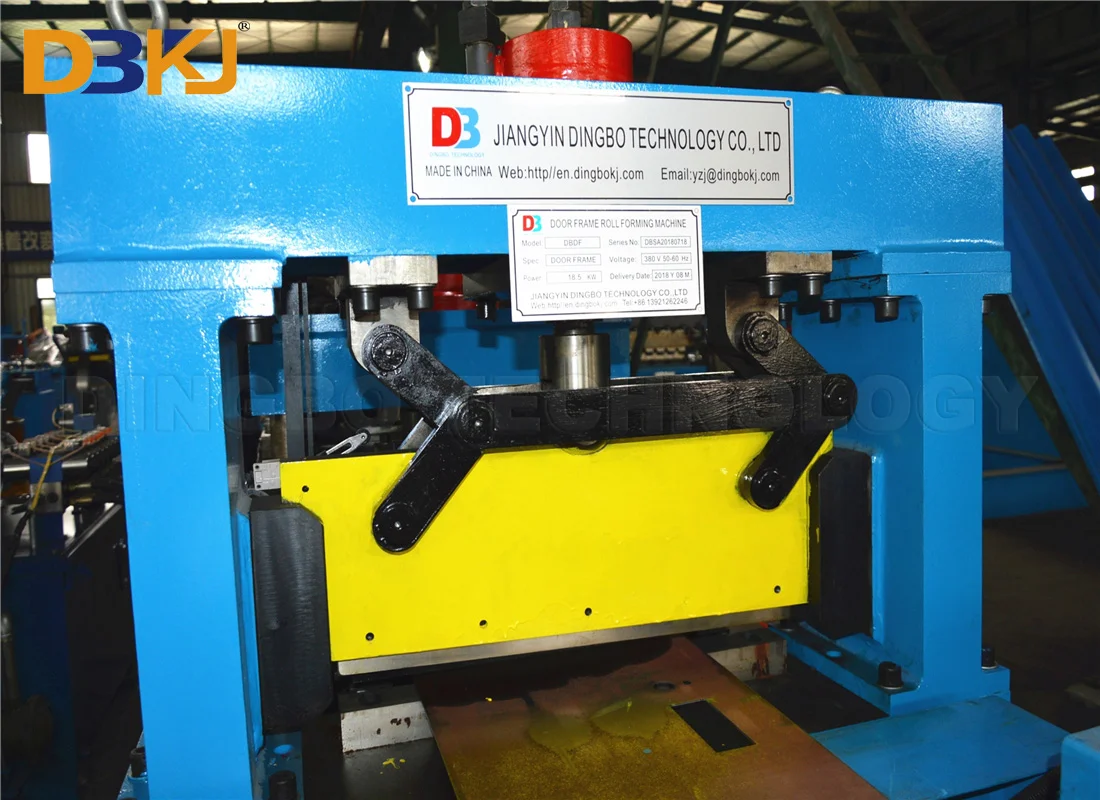

Door frame roll forming machine consists of hydraulic uncoiler, leveler, punching device, roll forming unit, shearing, run-out table, hydraulic station and electric control cabinet. The hydraulic station of the door frame roll forming machine adopts accumulator and PLC controller to generate a fast punching and shearing speed. When this cold roll forming line runs automatically, the maximum speed can reach up to 20 m/min with a stable and reliable performance.
Equipped with various hydraulic punching and notching unit, the machine can cut/ punch all the necessary holes/ notches online. After that, one piece of final product can be easily bend to a complete door or window frame, no need any further processing.

Working Flow

Uncoiler —Feeding —Roll forming —Hydraulic cutting&Punching —Output table

PPGI Trapezoidal Metal Roll Forming Machine 15m/Min

Product Parameters

Model Number	DBRF
Condition	New
Production Capacity	10-15m/min
Forming Speed	Max 12m/min
Weight	5-15T
Thickness	0.8-2mm
Roller Stations	15stations
Roller Material	45#steel
Cutting blade material	Cr 12mould steel
Material of shaft	45#steel
Diameter of shaft	65-95mm
Adjustment size	Maunal
Motor Power	15kw(Depend on final design)
Hydraulic Power	3kw(Depend on final design)
Voltage	380V 50Hz 3Phases
Length Tolerance	+-1.5
Drive Way	Chain transmission
Chain Size	0.6-2inch

Product Parameters

No.	Name	Qty
1	Decoiler	1

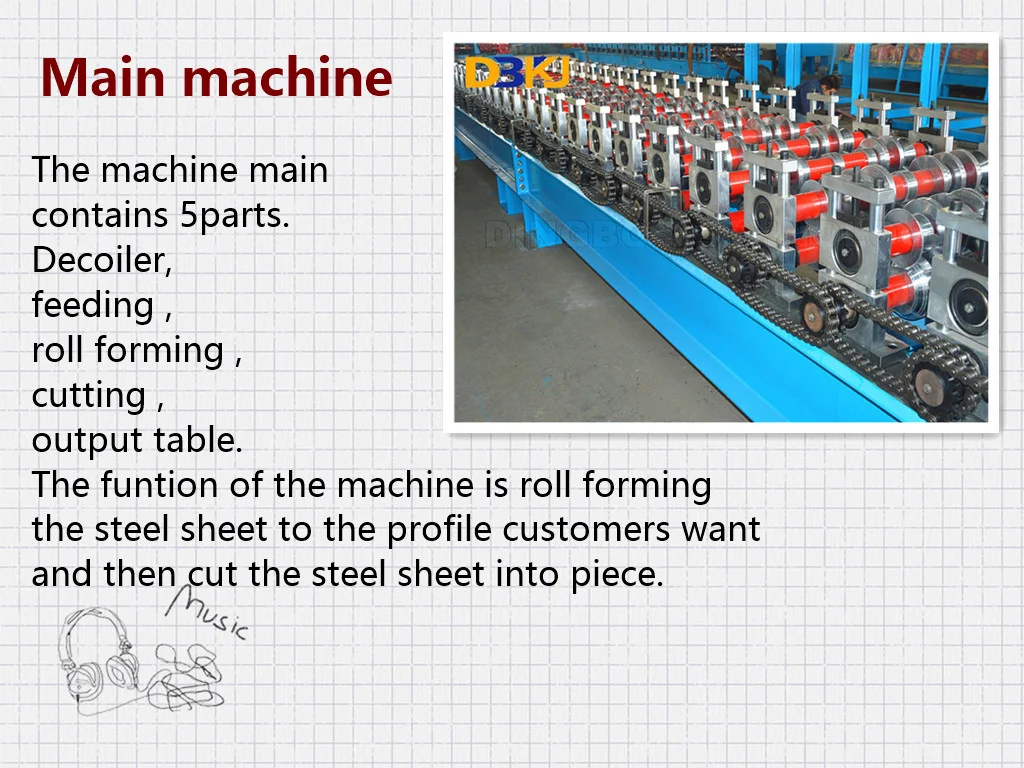

2	Main roll forming machine	1
3	PLC Control box	1
4	Hydraulic station	1

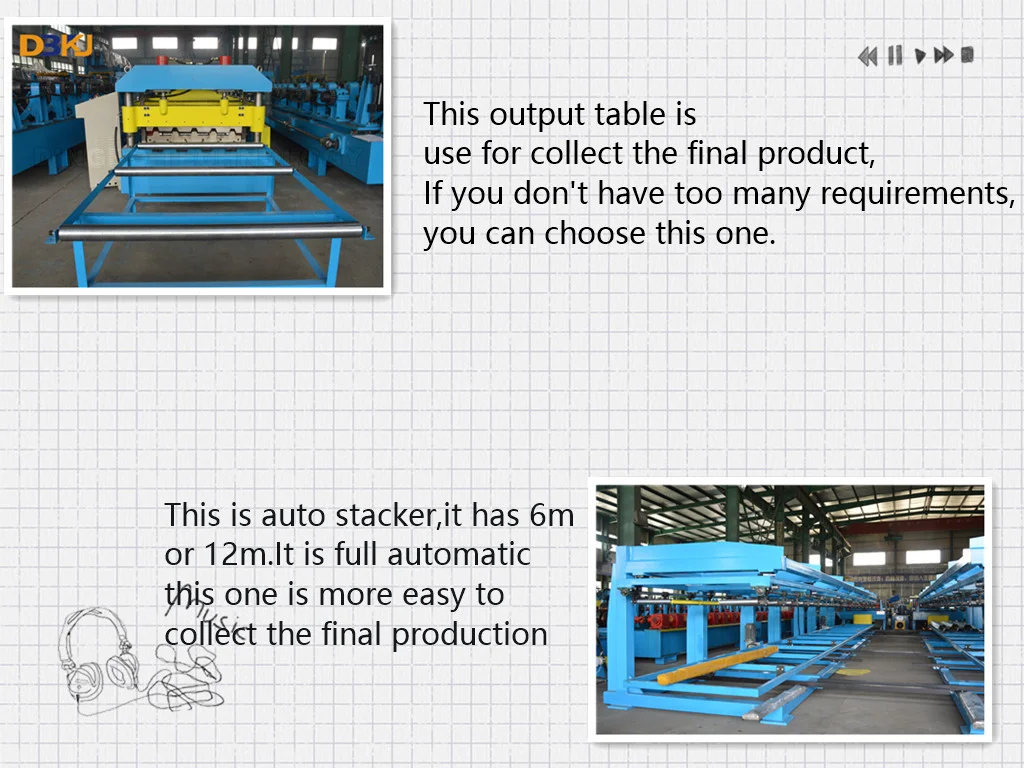

5	Output table	2

Application Pictures

The door frame of the door frame forming machine refers to the frame that surrounds the doorway and the top of the door and is installed on the wall, and usually supports the door frame of the door and the exposed door. Usually composed of two vertical frames and the upper floor when the door is bright, there is a frame in the middle. Its main function is to fix the door leaf and protect the corners and decorations. It is often used in the decoration process to protect the door from scratches, corrosion and damage.

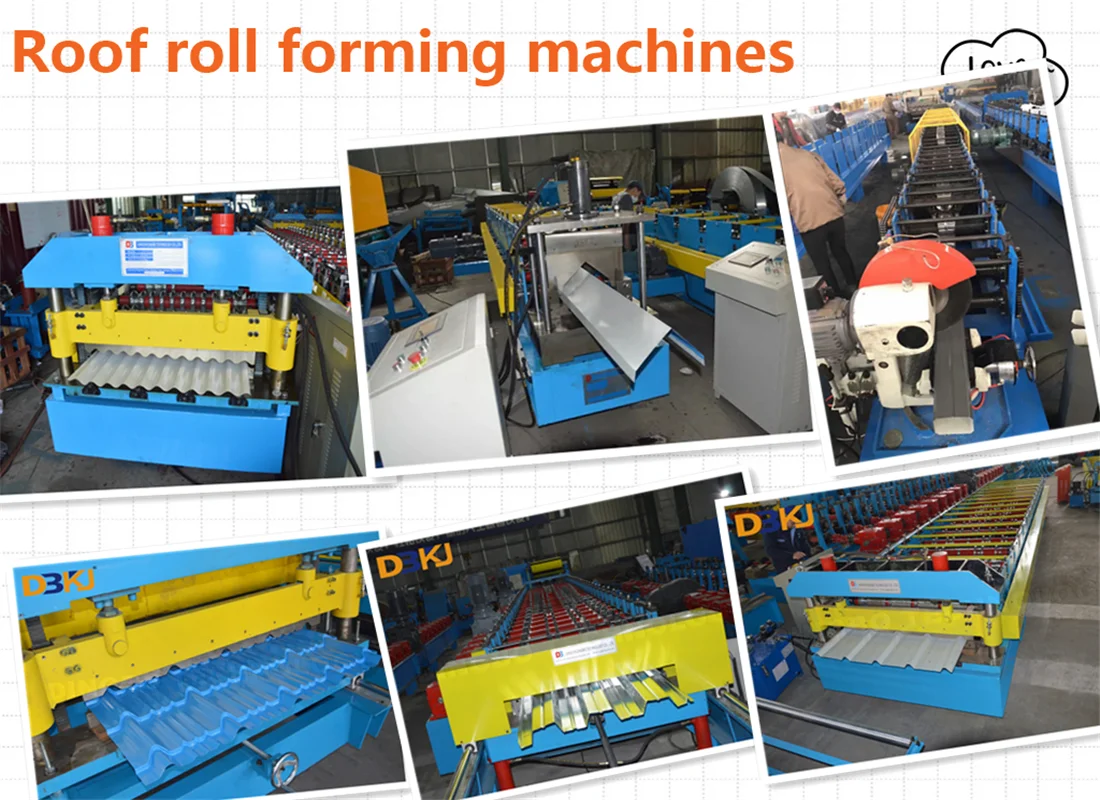

roof related

PPGI Trapezoidal Metal Roll Forming Machine 15m/Min

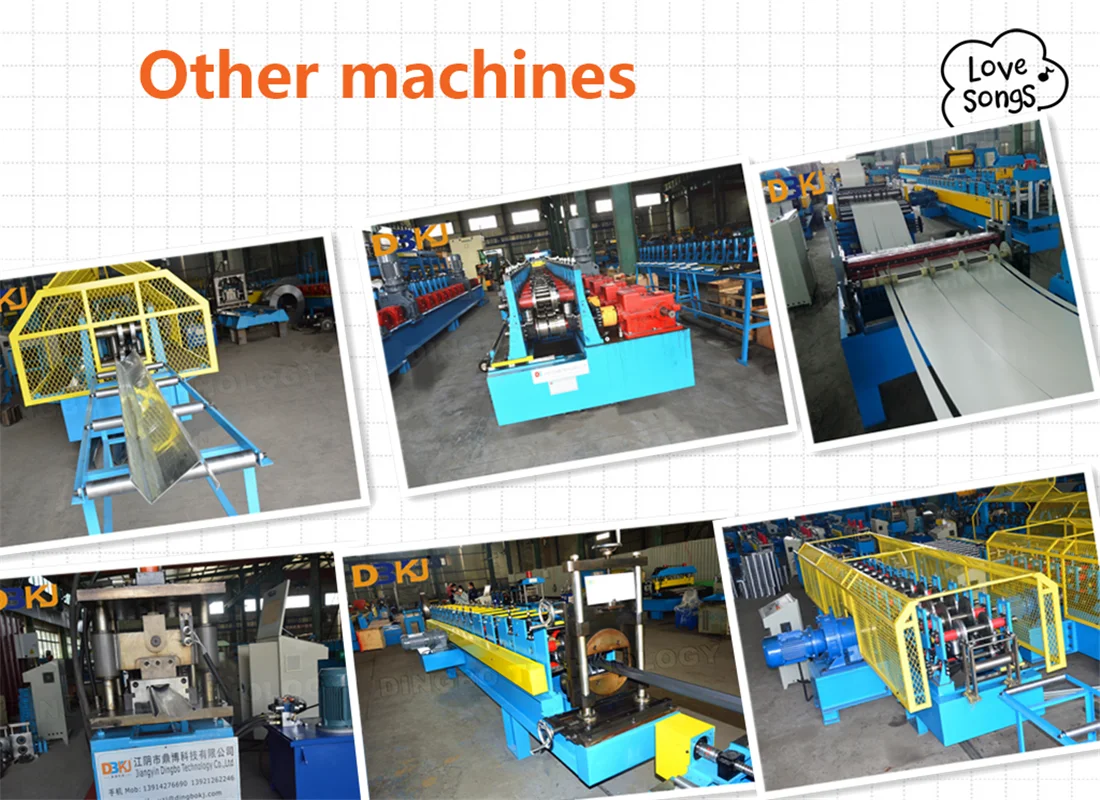

Other recommend

PPGI Trapezoidal Metal Roll Forming Machine 15m/Min

Customers visit

PPGI Trapezoidal Metal Roll Forming Machine 15m/Min

Packing& delivering

We will book cabins before delivery, and arrange land transportation before customs declaration. After all the parts were packed into the container, we repaired all parts of the machine and reminded the driver to pay attention to safety and our salespeople will always pay attention to logistics.

PPGI Trapezoidal Metal Roll Forming Machine 15m/Min

Accessories

PPGI Trapezoidal Metal Roll Forming Machine 15m/Min

FAQ

1. Q: What's the warranty period? (24hours online)

12 months warranty period, starting from the date of the successful installation and commissioning of the equipment at the Buyer’s Installation site. During which all parts damaged because of quality problem will be changed for free.

2. Q: Do you have installation and commissioning service?

A.If buyers come to our factory to inspect, the training to install and operate is provided face to face. If not, manual and video is provided to show how to install and operate.

B. If buyer need we will send technician to buyer site to do installation and commissioning and training.

C.installation and commissioning cost: One engineer will visit Buyer’s workshop for installing, commission and training. The buyer has to pay USD100/per day and visa fee, air tickets fee, accommodation and food, necessary communication, etc.

(Normally ,It takes about a week to install )

3. Q: What’s your after-sales service ?

We provide 24-hour online service for our customers.

And we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.

4. Q: What's your delivery time ?

Normally we can finish production and testing within 45-70 days after receiving deposit. Some machines in stock, can be delivered at any time

5. Q: You are trading company or factory?

We are Manufacturer, and we export our machine by ourselves.

6. Q: Do you provide customized machine?

Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

7. Q: How to place order ?

Inquiry---confirm the profile drawings and technical specification and price----confirm the PI---arrange the deposit or L/C---start production-- do inspection--- Shipment

8.What are your terms of payment ?

First payment: 30 % by T/T, second payment: 70% by T/T, after the successful inspection at seller’s workshop, and before delivery.
